Configuration of the convergence of the red spot with the laser beam

The EZCAD software allows you to align the red pointer, which indicates the engraving position, with the actual spot burned by the laser. By default, the red beam is calibrated to the laser beam with an accuracy of less than 1mm. However, if needed, additional beam adjustment is possible.

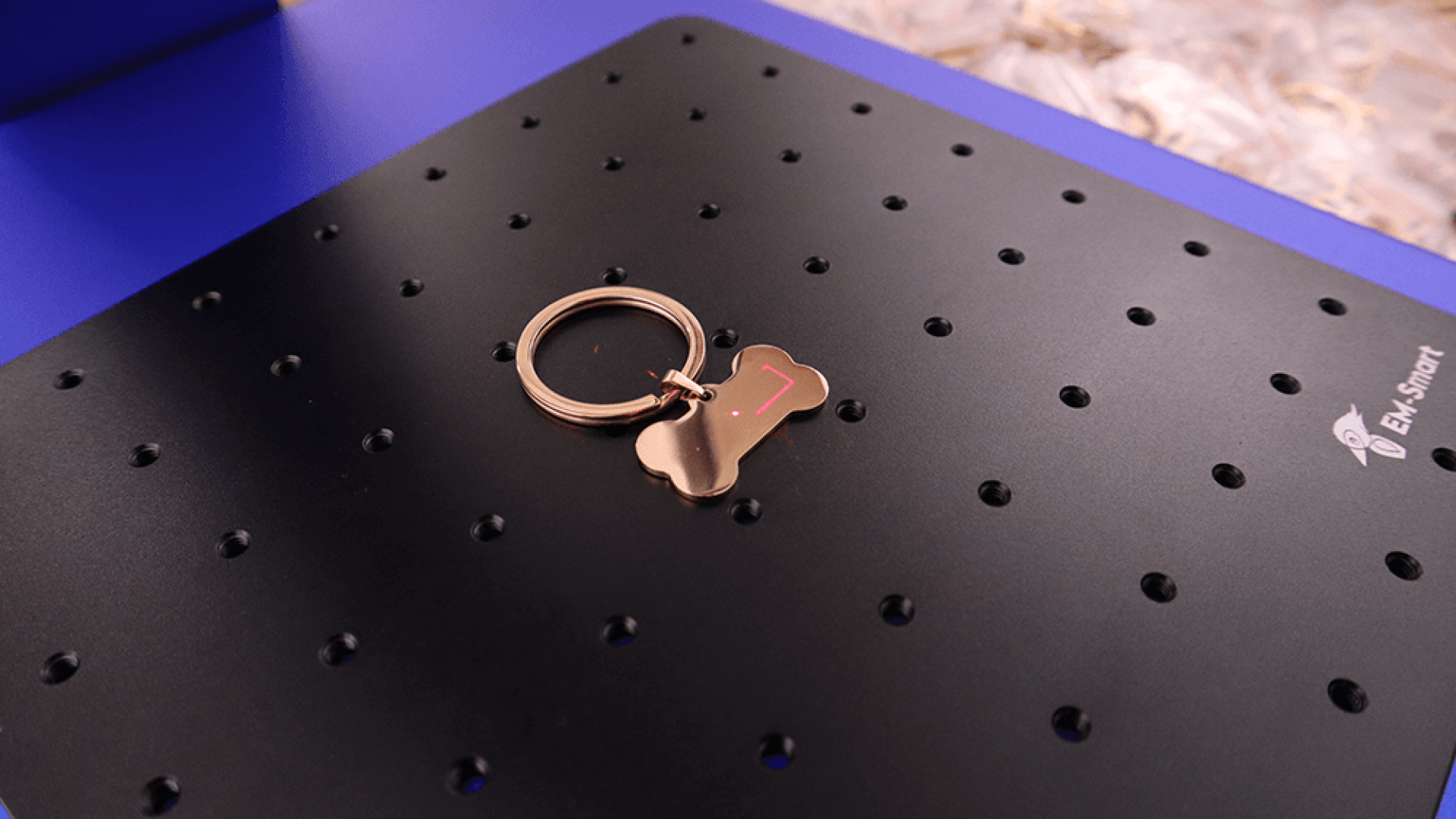

Zawieszka dla psa grawerowana przez laser EM Smart

The beam adjustment is possible after entering the “parameters (F3)” at the bottom of the screen.

Okno pokazujące konfigurację obsługi programu EZCAD

Then go to the “other” tab → “red light indicator”

Okno konfiguracji zbieżności plamki czerwonej z wiązką graweru

After clicking “Red Light Pointer” a window will appear where we can make adjustments. This window will allow you to change the display position of the red frame in the offset relative to the X and Y axes and will allow you to scale the displayed preview frame in the X and Y axes. Changing these parameters will allow you to adjust the red light pointer with the laser beam as needed.

Konfiguracja zbieżności plamki czerwonej z wiązką graweru
