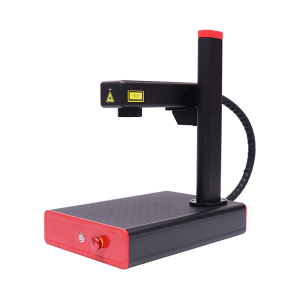

The EM-Smart SUPER laser marker has been specially designed for many industries, including craftsmen, workshops and manufacturing companies, where its small size, compact design and additional accessories allow for effective use of the device even in a small space.
The small size of the EM-Smart SUPER series
offers many possibilities
Height 20 cm
The EM-Smart SUPER marking machine allows for engraving on objects with a maximum height of 20 cm as standard. However, after turning the head attachment by 90 degrees, the height of the objects increases significantly.
30 and 50 Watts of power
30W and 50W of power from the MAX Photonics laser source will allow you to mark metal and selected plastics.
Marking in a circle
The EM-Smart SUPER marking machine is equipped with a rotary attachment.
Area 150 x 150 mm
The EM-Smart marking machine has a high-quality lens, which allows you to mark objects in an area of 150 x 150 mm as standard. It can be enlarged to 175 x 175 mm or smaller lenses of 110x110mm and 70x70mm can be used.
EZCAD Software
EM-Smart offers EZ-CAD V2.14.11 software, which fully works under Win 7, Win 10 and supports many graphic formats: ai, dxf, dst, plt, bmp, jpg, png and others. Thanks to cooperation with the database, you can save character strings and automate the marking process. Add to this the automatic feeder and you will significantly speed up the marking process.
Easy to use
Simple operation thanks to the integrated two-point system facilitating the determination of the height of marked objects.
Safety at work
The safety button available on the front panel of the machine and built-in protection of electronic components allow for safe operation. Additionally, the prepared safety casing allows for effective protection of co-workers. Safety glasses are included as standard!
Power consumption up to 180W
Power consumption of only up to 180W during operation is one of the best results in the class of Fiber lasers, which can consume close to 800W. It is worth betting on ecology and a low energy bill!
Additional accessories
We have many additional accessories for all EM-SMART SUPER series devices, including a feeder that automates the marking process, a foot switch, additional lenses, a filter with accessories, a cutting vice, a 3-axis moving table, a sensor for elements for the production line, glasses, a safety housing and others.
See a comparison chart of all EM-SMART models
The EM-Smart fiber laser will prove useful in many industries
The EM-Smart SUPER laser will prove useful in many industries, both on the production line, where you will be able to mark serial numbers on your items, as well as in an advertising company. You can use it to make nameplates, prints on gadgets or other permanent markings. Thanks to higher power, you will provide yourself with greater flexibility and the possibility of making larger batches of products!
The EM-Smart SUPER +R version with a rotating attachment will be a complement wherever you need to mark round objects: tools, sleeves, as well as thermo mugs and other objects. Due to the possibility of working the attachment also in the Z axis, jewelers will mark rings or wedding rings both with a pattern on the outside and a description inside the ring.
With every EM-Smart laser you get
Software
Invoice and Warranty
Service and technical support
Work automation and accessories
Additional options

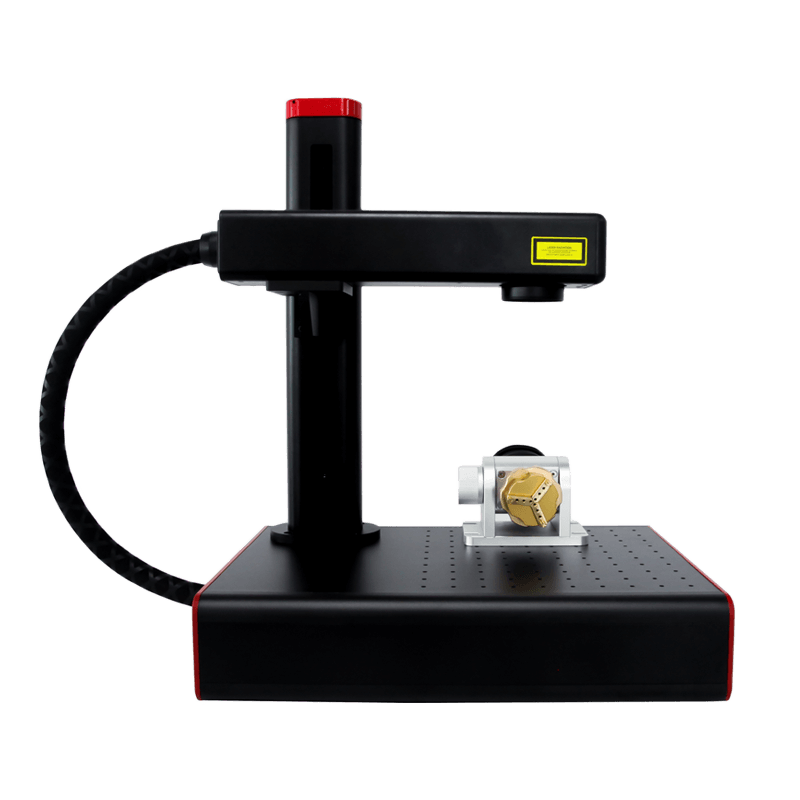

Rotary attachment in the EM-Smart SUPER +R series
See what possibilities the rotary attachment has:
• Attachment for various sizes
Our rotating attachment is designed for both small items such as rings, cutters, drills, as well as larger ones such as bearings, bracelets, cups, etc.
• Tall containers
After extending the handles, you can also label bottles, thermoses or thermal mugs.
• Work comfort
Rotary spring clamp, quick assembly and disassembly to improve work efficiency.
• 360-degree marking
With the rotary attachment, be prepared for 360-degree marking as well as accurate and stable rotational positioning.
• Industry standard interface
The EM-Smart rotary attachment is equipped with an industry standard interface.
Permanent metal marking
You can perfectly mark materials such as:
METALS
ARTIFICIAL MATERIALS
OTHER MATERIALS
Specification
Dimensions
Libra
14 kg
Laser power
30 W | 50 W Fiber Laser
Work area
110 x 100 mm
Marking speed
0 – 8000 mm/s
Working Temperature
from 15 to 35 degrees Celsius
Energy Consumption
up to 180 W
Item Height
up to 200 mm
Rotary attachment range
9-100 mm
Rotary attachment inclination angle
100 – 400
Software | Operating System
EZCAD 2.0/LITE EN/PL | Windows | (optional for iOS – Lightburn)
Communication with the machine
USB cable
Contents
Laser, safety glasses, USB flash drive with software, USB cable
